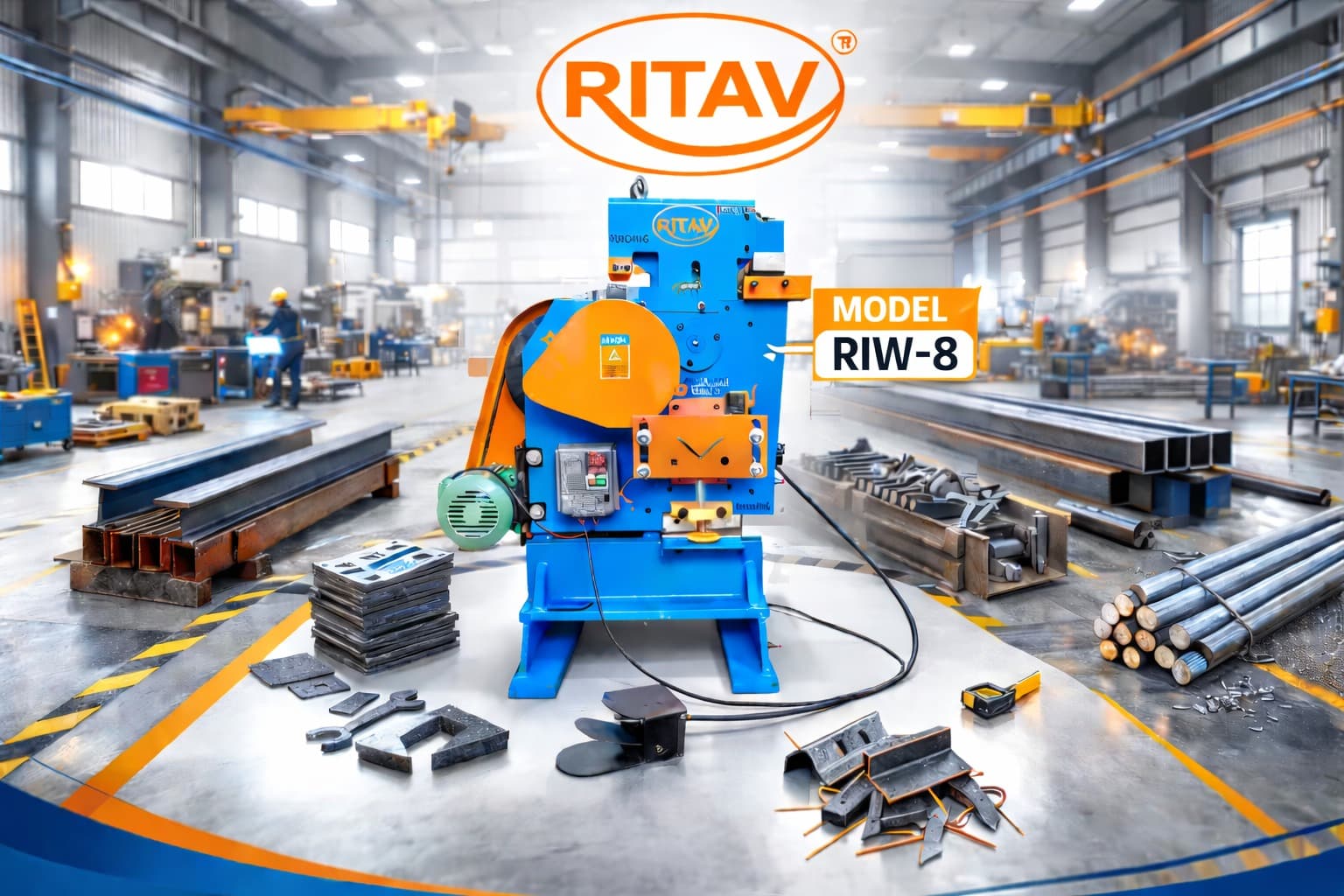

RIW-8 Mechanical Iron Worker
Key Specifications
Processing Capabilities
Multi-functional operations integrated in one powerful machine
Punching
Precision hole punching up to Ø20mm x 6mm in plates and profiles for bolt holes and assembly points.
Channel Shearing
Clean cutting of channel steel up to 75x40x6mm for structural fabrication work.
Notching
V-notch and corner notching in sheet metal and profiles up to 6mm thickness for welding preparation.
Angle Cutting
Precise cutting of angle steel up to 75x75x6mm with no material waste or burrs.
Round Bar
Cutting round bars up to 20mm diameter for rods, shafts, and structural components.
Square Bar
Shearing square bars up to 14x14mm for frames, supports, and fabrication projects.
Flat Steel
Cutting flat steel plates up to 100mm x 8mm thickness for various industrial applications.
Die Options Available
Flexible die configurations for various material profiles and sizes
Note: Each station comes equipped with a single die. Additional dies available on request at extra cost.
Technical Specifications
| Specification | RIW-8 |
|---|---|
| MODEL | RIW-8 |
| SHEAR FORCE | 30 T |
| STROKE TIME | 30 T/Min |
| MOTOR POWER | 3 HP |
| APPROX. WEIGHT (Kg) | 500 |
| APPROX. DIMENSION (mm) | 1200 X 950 X 600 |
| MAX. PUNCHING HOLE (mm) | Ø20 X 6 |
| CUTTING FLAT STEEL (mm) | 100 X 8 |
| SHEAR CHANNEL STEEL (mm) | 75 X 40 X 6 |
| ANGLE CUTTING (mm) | 75 X 75 X 6 |
| NOTCHING (mm) | 6 |
Standard Accessories Included
Each station comes equipped with a single die (additional dies available on request at extra cost)
High-performance 3 Phase Motor for reliable operation
Digital Electric Starter with advanced safety features
Comprehensive Toolkit: Double-ended Spanners, Grease Gun & Allen key set
Product Description
The RIW-8 Mechanical Iron Worker is a versatile multi-station metal processing machine designed for small to medium-scale fabrication workshops. With a powerful 30-ton shear force and 3 HP motor, this compact machine combines five essential operations in one unit: punching, flat steel cutting, channel/angle shearing, notching, and bar cutting. Built with a robust mechanical gear-driven system, the RIW-8 offers reliable performance at 30 strokes per minute. The powder-coated blue and orange finish ensures durability and aesthetic appeal. Each processing station comes equipped with a single die set, with additional dies available on request. Standard accessories include double-ended spanners, grease gun, and Allen key set. The machine features a digital electric starter with advanced safety features and foot pedal control for hands-free operation. Ideal for steel fabricators, construction companies, and metal workshops requiring multiple operations without investing in separate machines.
