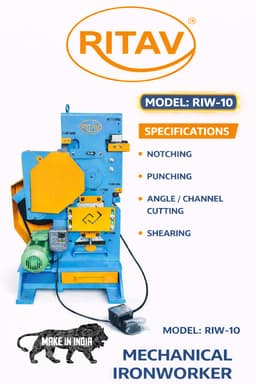

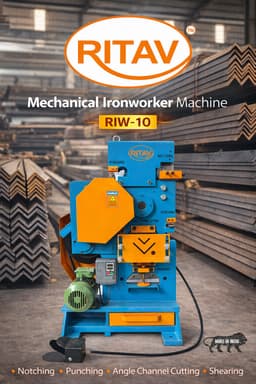

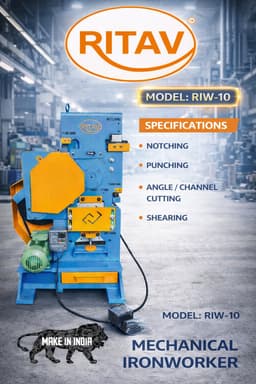

RIW-10 Mechanical Iron Worker
Key Specifications
Processing Capabilities
Multi-functional operations integrated in one powerful machine
Punching
Heavy-duty hole punching up to Ø25mm x 8mm in thick plates and structural profiles for large bolt connections.
Channel Shearing
Cutting channel steel up to 100x50x6mm for heavy structural fabrication and construction projects.
Notching
Notching operations up to 8mm thickness for preparing joints, corners, and welding edges.
Angle Cutting
Precision cutting of large angle steel up to 100x100x8mm for heavy structural applications.
Round Bar
Cutting round bars up to 25mm diameter for heavy-duty shafts, rods, and structural components.
Square Bar
Shearing square bars up to 18x18mm for heavy frames, supports, and industrial fabrication.
Flat Steel
Cutting wide flat steel plates up to 200mm x 10mm for large-scale industrial applications.

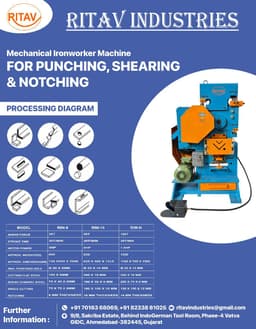

Die Options Available
Flexible die configurations for various material profiles and sizes
Note: Each station comes equipped with a single die. Additional dies available on request at extra cost.
Technical Specifications
| Specification | RIW-10 |
|---|---|
| MODEL | RIW-10 |
| SHEAR FORCE | 50 T |
| STROKE TIME | 30 T/Min |
| MOTOR POWER | 5 HP |
| APPROX. WEIGHT (Kg) | 750 |
| APPROX. DIMENSION (mm) | 1410 X 900 X 700 |
| MAX. PUNCHING HOLE (mm) | Ø 25 X 8 |
| CUTTING FLAT STEEL (mm) | 200 X 10 |
| SHEAR CHANNEL STEEL (mm) | 100 X 50 X 6 |
| ANGLE CUTTING (mm) | 100 X 100 X 8 |
| NOTCHING (mm) | 8 |
Standard Accessories Included
Each station comes equipped with a single die (additional dies available on request at extra cost)
High-performance 3 Phase Motor for reliable operation
Digital Electric Starter with advanced safety features
Comprehensive Toolkit: Double-ended Spanners, Grease Gun & Allen key set
Product Description
The RIW-10 Mechanical Iron Worker is a robust mid-capacity multi-station metal processing machine designed for medium to large-scale fabrication workshops. With an impressive 50-ton shear force and 5 HP motor, this machine handles heavier materials with ease. The RIW-10 combines five essential metalworking operations: punching holes up to Ø25mm x 8mm, cutting flat steel up to 200mm x 10mm, shearing channel steel (100x50x6mm), angle cutting (100x100x8mm), and notching up to 8mm thickness. Built with a mechanical gear-driven system, it delivers 30 strokes per minute for efficient production. The powder-coated blue and orange finish ensures durability and professional appearance. Each processing station comes with standard die sets, with multiple die options available for different material profiles. Standard accessories include high-performance 3-phase motor, digital electric starter with advanced safety features, and comprehensive toolkit. Ideal for structural steel fabrication, transmission towers, construction projects, and heavy-duty metal workshops requiring versatile processing capabilities.
