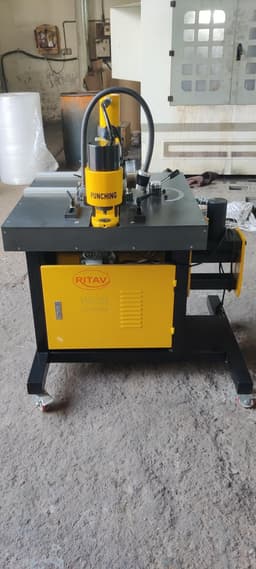

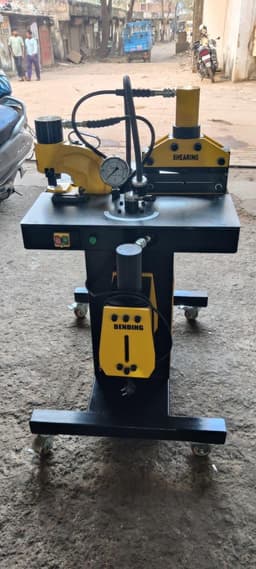

Portable Busbar Machine
Key Specifications
Processing Capabilities
Multi-functional operations integrated in one powerful machine
PUNCHING
Precise hole punching in busbars from 7mm to 20.8mm diameter with standard punches. Suitable for electrical connection holes.
SHEARING
Clean cutting of copper and aluminium busbars up to 200mm x 12mm. Perfect for cutting busbars to required lengths.
BENDING
Accurate bending of busbars up to 200mm x 12mm for creating required angles and configurations in panel manufacturing.
Technical Specifications
| Specification | RBB-200 |
|---|---|
| MODEL | RBB-200 |
| VOLTAGE | 220V/50Hz |
| MAX. CUTTING CAP. (COPPER, ALUMINIUM) | 200 x 12 |
| MAX. BENDING CAP. (COPPER, ALUMINIUM) | 200 x 12 |
| MAX. PUNCHING CAP. (COPPER, ALUMINIUM) | 200 x 12 |
| STANDARD PUNCH | 7mm, 9mm, 10.5mm, 13.8mm, 17.5mm, 20.8mm |
| TABLE SIZE | 730(L) x 900(W) x 1160(H) |
| APPROX. WEIGHT (KG) | 200 KG |
Standard Accessories Included
Each station comes equipped with a single die (additional dies available on request at extra cost)
High-performance 3 Phase Motor for reliable operation
Digital Electric Starter with advanced safety features
Comprehensive Toolkit: Double-ended Spanners, Grease Gun & Allen key set
Product Description
Portable Busbar Machine designed for on-site busbar processing. Compact and mobile design makes it ideal for electrical panel manufacturing and maintenance operations.
